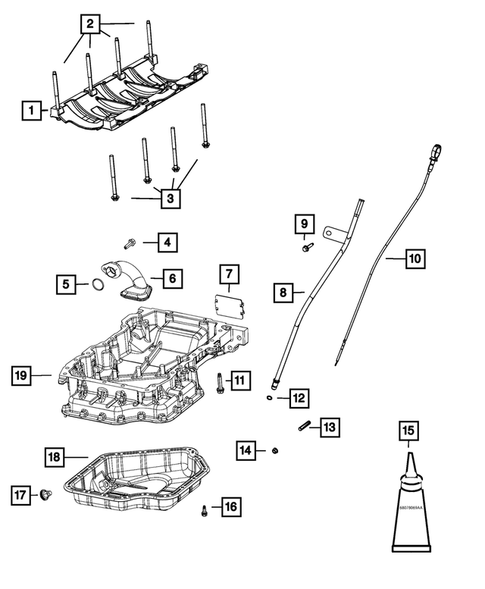

Engine Oiling, Oil Pan and Indicator (Dipstick) for 2011 Chrysler 200
No.
Part # / Description / Price
Price
1
MSRP $79.90
$57.19
2
Hex Flange Head Bolt, Mounting, Inboard
Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: Inner Main Bearing Cap To Cylinder Block. Inboard Main Bearing Cap To Cylinder Block. M11x1.50x94.00.
MSRP $6.70
$5.85
MSRP $6.70
$5.85
3
Hex Flange Head Bolt, Mounting, Outboard Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: M8x1.25x97.00. Main Bearing Cap To Cylinder block.
MSRP $4.90
$4.28
MSRP $4.90
$4.28
4
MSRP $8.80
$7.35
5
Oil Pick Up Tube O Ring Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: 28.24mm ID.
MSRP $11.25
$9.45
MSRP $11.25
$9.45
6
Oil Pickup Tube Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: OIL PICKUP
MSRP $49.75
$35.73
MSRP $49.75
$35.73
7
Cover, Mounting Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 PZEV 16V DUAL VVT ENGINE. 3.6L Mid V6 Engine.
Description: Torque Converter Bolt Access. Flywheel Bolt Access. Torque Converter Bolt Acess. Torque Conveter Bolt Access. Bedplate Acess. Coolant Port. Ladder Frame Access.
MSRP $3.70
$3.23
MSRP $3.70
$3.23
8
Engine Oil Indicator Tube Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: ENGINE OIL INDICATOR
MSRP $32.60
$26.26
MSRP $32.60
$26.26
9
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 PZEV 16V DUAL VVT ENGINE. 3.6L Mid V6 Engine.
MSRP $3.65
$3.23
MSRP $3.65
$3.23
10
MSRP $34.75
$24.70
11
Hex Head Bolt And Coned Washer, Mounting, Upper Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: Upper Oil Pan To Cylinder Block. M8x1.25x45.00. Engine Oil Pan To Cylinder Block. Upper Oil Pan To Cylinder Plug.
MSRP $3.45
$3.00
MSRP $3.45
$3.00
12
MSRP $5.95
$5.33
13
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: Lower Oil Pan To Upper. M6x1.00x32. M6x1.0x38.
14
Hex Flange Nut, Mounting, Front Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: Channel Lower. M6x1.00. Lines to Hvac. After 01-09-2002. Included in Sliding Door Glass. Glass to Regulator attaching. Glass Assy. to Window Regulator. Glass atttach to regulator.
MSRP $4.90
$4.35
MSRP $4.90
$4.35
15
Rtv Gray Sealer 2 Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: For Cover Plate. Three Bond Type. Engine Oil Pan to Cylinder Block.
Not For Sale
Not For Sale
16
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: M6x1.00x20.00. Oil Pan to Rear Oil Seal Retainer.
MSRP $2.10
$1.80
MSRP $2.10
$1.80
16
Hex Head Bolt And Coned Washer, Mounting, Lower Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
MSRP $5.20
$4.58
MSRP $5.20
$4.58
17
Oil Drain Plug Mopar
Mopar Notes: Engines: 2.0L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 DOHC 16V DUAL VVT ENGINE. 2.4L I4 PZEV 16V DUAL VVT ENGINE. 3.6L Mid V6 Engine.
Description: [M18 x 1.0]. [M14x1.50x21.50]. Used Up To 05/22/2020. -NAM ( with Out Mexico).
MSRP $14.45
$11.90
MSRP $14.45
$11.90
18
Engine Oil Pan, Lower Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: ENGINE OIL
MSRP $214.00
$137.34
MSRP $214.00
$137.34
19
Engine Oil Pan, Upper Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: ENGINE OIL
MSRP $450.00
$288.36
MSRP $450.00
$288.36
2 This part contains hazardous materials. Extra shipping costs apply.

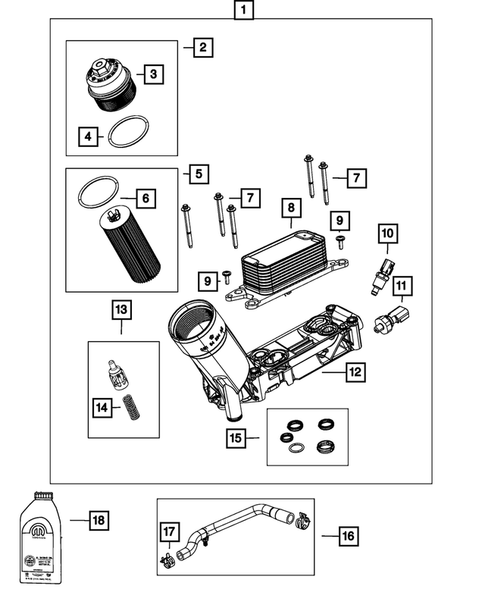

No.
Part # / Description / Price
Price
1
MSRP $374.00
$241.92
2
MSRP $52.40
$37.35
5
MSRP $9.05
$7.56
7
Bolt, Mounting Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: Engine Oil Filter Module To Cylinder Block.
MSRP $17.30
$13.77
MSRP $17.30
$13.77
10
Fluid Temperature Sensor Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: Engine Oil. Engine Coolant Temerature. Coolant Temp. In water pump.
MSRP $67.90
$48.62
MSRP $67.90
$48.62
11
Oil Pressure Sending Unit Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: At Oil Filter Adaptor. To Engine Block.
MSRP $86.70
$57.46
MSRP $86.70
$57.46
13
MSRP $78.50
$56.29
16
Oil Cooler Outlet Hose Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: OIL COOLER OUTLET
MSRP $52.60
$37.83
MSRP $52.60
$37.83
18
5w30 Engine Oil 2 Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: Quart. MS-6395. [32 Fluid Ounces] Minimum Ship Quanity Of 12. Ms-6395 [api sm/gf-4].
Not For Sale
Not For Sale
2 This part contains hazardous materials. Extra shipping costs apply.

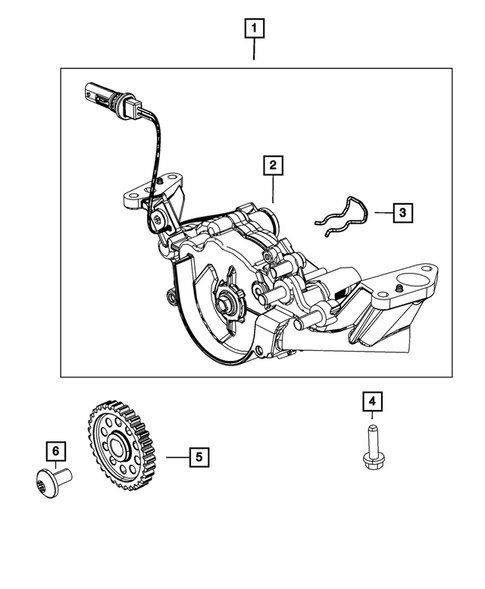

No.
Part # / Description / Price
Price
1
Engine Oil Pump Kit Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: After 03/07/2016.
MSRP $321.00
$207.10
MSRP $321.00
$207.10
3
Clip Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: Locking Oil Pump Connector To Cylinder Block. Oil Pump Pressure.
MSRP $3.70
$3.23
MSRP $3.70
$3.23
4
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: M6x1.00x25.00. Reinf plate to rambox inr. Crossover ot front cover. Crossover Attaching. Crossover to front cover. Oil Pump. Crossover to timing cover. Crossover to frot cover. Crossover to front pump. Pump To Front Cover.
MSRP $7.00
$6.23
MSRP $7.00
$6.23
5
MSRP $109.00
$70.94
6
Recessed Torx Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.6L Mid V6 Engine.
Description: M8x1.25x16.00. Oil Pump To Drive Gear. [M8x16]. Oil Pump Sprocket. Sprinter. Intake Support Bracket To Cylinder Head.
MSRP $4.50
$3.98
MSRP $4.50
$3.98
