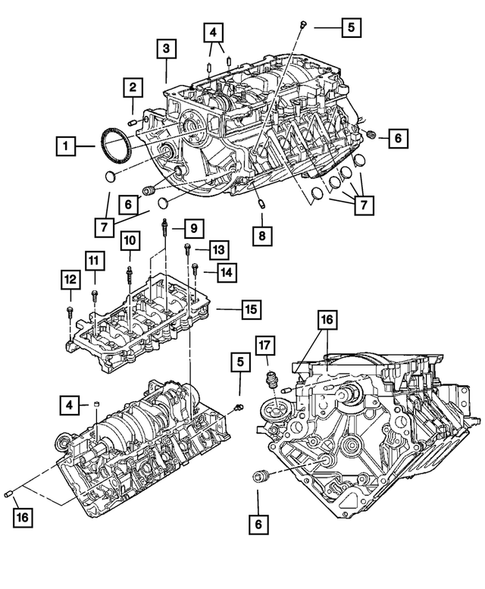

Cylinder Block for 2011 Ram Dakota
No.
Part # / Description / Price
Price
1
Crankshaft Oil Seal
Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Rear.
MSRP $48.75
$35.07
MSRP $48.75
$35.07
2
Block To Clutch Housing Dowel Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Cylinder Block to Clutch Housing. Block To Head. [.25x.75]. Or Transmission Housing. Block To Transmission. 1/2 x 3/4.
MSRP $12.50
$10.29
MSRP $12.50
$10.29
3
Short Block Engine 1 Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: See Note.
3
Long Block Engine, Remanufactured 1 Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: New Part For Core Return. SERVICE WARNING: If The Original Engine Has Experiencd A Catastrophic Failure - Including Piston, Cylinder Bore, Valve, or Valve Seat Failure - The Intake Manifold Must Be Replaced With A New Manifold. See Note.
4
Pin, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: [m15x12.5]. M15x12.50. Cylinder Block to Bedplate.
5
Plug, Side Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: After 6/14/04. After 4/26/04. Mega Cab. Coolant Drain [.25x18x.69]. 0.250-18x.690. Cylinder Block Water Jacket Drain. Oil Gallery, Front. Right And Left Cylinder Block Coolant Drain.
MSRP $13.95
$11.62
MSRP $13.95
$11.62
6
Pipe Plug Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Oil Gallery. Engine Block Oil Hole. 500-14x.560. Block To Bedplate.
7
Core Plug, Cylinder Block Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Axle Shaft Flange Plug. Id=m32.26 od=35.00 thick=1.37. 1.39 diameter. [id=m32.26 od=35.00 thk=1.37]. Front Crankcase Cavity Block Off. For Engines Without Cylinder Block Heater Only. Water Jacket. For Vehicles Without Cylinder Block Heater Only.
MSRP $6.80
$5.93
MSRP $6.80
$5.93
8
Dowel Pin, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine. Item 13 Also Contained in Short Block Engine Kit. Mega Cab. Cylinder Block To Transaxle. Block To Transmission. Cylinder Block To Head. Engine Block To Clutch Housing.
MSRP $9.45
$7.84
MSRP $9.45
$7.84
9
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: Bedplate To Cylinder Block. M11x1.50x8x1.25x142.75. [m11x1.50xm8x1.25x118.50]. M11x1.50xM8x1.25x142.75. Crankshaft Bearing.
10
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: Bedplate To Cylinder Block. M11x1.50x8x1.25x118.50. M11x1.50xM8x1.25x118.50. Crankshaft Bearing.
11
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: M11x1.50x90.00. Main Bearing Cap To Cylinder Block. Crankshaft Bearing. M11x1.50x90.0. BedPlate to Cylinder Block.
MSRP $5.20
$4.58
MSRP $5.20
$4.58
12
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Main Bearing Cap To Cylinder Block. [M10x1.50x55.00]. Crankshaft Bearing. BedPlate to Cylinder Block.
MSRP $5.50
$4.88
MSRP $5.50
$4.88
13
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: Bedplate To Cylinder Block. Mega Cab. Main Bearing Cap To Cylinder Block. Rocker Shaft Mounting. Rocker Shaft to Cylinder Head. Crankshaft Bearing. M8x1.25x50.00. Quad Cab. Regular Cab. Rocker Arm Shaft.
MSRP $2.60
$2.33
MSRP $2.60
$2.33
14
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: Bedplate To Cylinder Block. [m10x1.50x83.5]. M10x1.50x83.50. Main Bearing Cap To Cylinder Block. Crankshaft Bearing.
16
Dowel, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Engine Block To Front Cover. Cylinder Block to Bedplate.
MSRP $8.25
$7.28
MSRP $8.25
$7.28
17
Oil Filter Connector Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: M22x1.50. [22mm].
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
Price

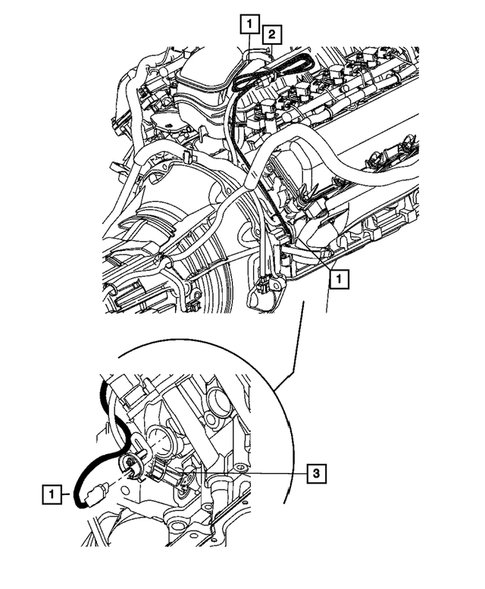

2
Cable Tie Mopar
Mopar Description: Transmission Harness To Starter. Brake Vacuum Line to Harness.
MSRP $0.45
$0.38
MSRP $0.45
$0.38
