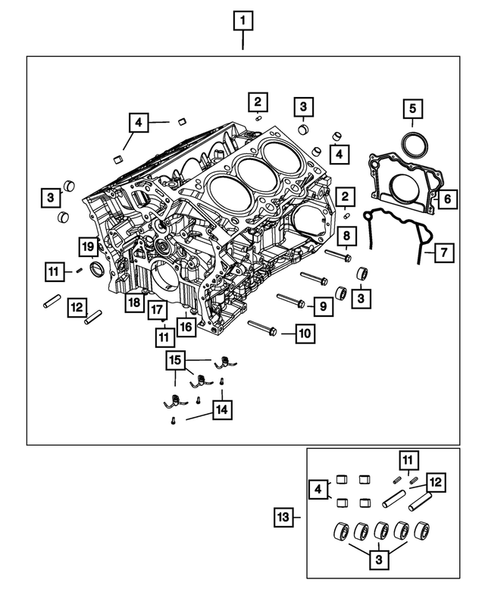

Cylinder Block for 2015 Jeep Wrangler
No.
Part # / Description / Price
Price
1
Long Block Engine 1
Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MANUAL NSG370 TRANSMISSION.
Description: IMPORTANT NOTE***When A Long Block Engine Is Replaced New Or Remanufactured The Fasteners For The Transmission Bracket To Transmission Case MUST Be Replaced For The Orginal Fasteners Are A One Time Use Only. Order Fastener Kit PN 68329056AA. See important note for contents. OE Equivalent Supporting Sustainera.
MSRP $7,410.00
$5,971.63
MSRP $7,410.00
$5,971.63
1
Short Block Engine Kit 1 Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MANUAL NSG370 TRANSMISSION.
Description: Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. New Part For Core Return.
2
Dowel, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: Mounting, Transmission To Cylinder Block. Transmission To Engine. Transmisasion To Cylinder Block.
MSRP $3.10
$2.70
MSRP $3.10
$2.70
3
Pipe Plug Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: M24x1.50. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Coolant Drain. Main Oil Gallery. Oil Control Valve. Item 13 Also Contained in Short Block Engine Kit. Coolant Passage. Oil Gallery Side Of Cylinder Block.
MSRP $9.25
$7.63
MSRP $9.25
$7.63
4
Dowel Pin, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine. Item 13 Also Contained in Short Block Engine Kit. Mega Cab. Cylinder Block To Transaxle. Block To Transmission. Cylinder Block To Head. Engine Block To Clutch Housing.
MSRP $9.45
$7.84
MSRP $9.45
$7.84
6
Crankshaft Rear Oil Retainer And Seal Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
MSRP $95.90
$63.32
MSRP $95.90
$63.32
8
Hex Head Bolt And Coned Washer, Mounting, Lower Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
MSRP $5.20
$4.58
MSRP $5.20
$4.58
9
Hex Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: Mounting, Main Bearing Crossbar To Cylinder Block. Pump Bracket To Engine. M8x1.25x40.00. Tensioner Bracket To Cylinder Head. Main Bearing Cap Cross Bar To Cylinder Block.
MSRP $3.45
$3.00
MSRP $3.45
$3.00
10
Hex Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: M8x1.25x58.00. Main Bearing Cross To Cylinder Block.
MSRP $3.45
$3.00
MSRP $3.45
$3.00
11
Dowel Pin, Camshaft Sprocket Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
MSRP $3.20
$2.78
MSRP $3.20
$2.78
12
Pin, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: Timing Chain Tensioner Arm To Cylinder Block. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Item 13 Also Contained in Short Block Engine Kit. Panel Attaching Pins. Timing Chain Drive. Timing Chain Guide.
MSRP $5.15
$4.50
MSRP $5.15
$4.50
13
Short Block Engine Pin Kit Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Included With Short Block Engine. MUST Be Installed On Cylinder Block Before Engine Is Installed.
MSRP $21.60
$17.28
MSRP $21.60
$17.28
14
Pan Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: Front Splash Shield To Oil Pump. M5x.08x16.00. Piston Oil Cooler Jet. Door Handle to Door M5x16.
MSRP $8.75
$7.21
MSRP $8.75
$7.21
15
Piston Oil Cooler Jet Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: PISTON OIL COOLER
MSRP $15.05
$12.53
MSRP $15.05
$12.53
16
Hex Flange Head Bolt, Mounting, Inboard Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: Inner Main Bearing Cap To Cylinder Block. Inboard Main Bearing Cap To Cylinder Block. M11x1.50x94.00.
MSRP $6.70
$5.85
MSRP $6.70
$5.85
18
Hex Flange Head Bolt, Mounting, Outboard Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: M8x1.25x97.00. Main Bearing Cap To Cylinder block.
MSRP $4.90
$4.28
MSRP $4.90
$4.28
19
Core Plug, Cylinder Head Plug Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: Water Jacket Core. Two [2] Per Cylinder Head. Back Of Lower Intake Manifold. Mega Cab. [1.25 Diameter]. 1 1/4.
MSRP $7.05
$6.15
MSRP $7.05
$6.15
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
Price

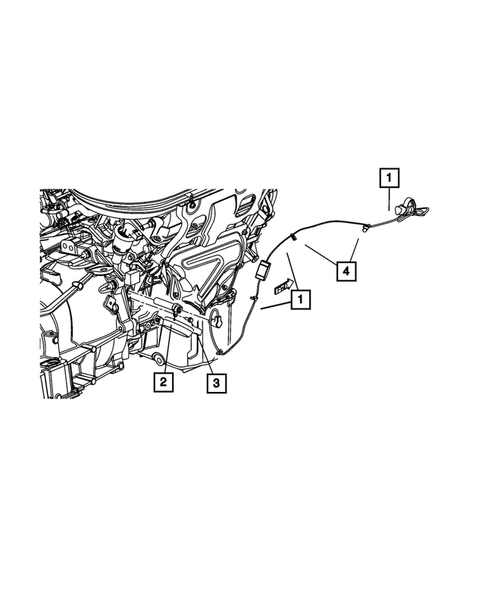

1
Engine Block Heater Cord Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
MSRP $129.00
$84.42
MSRP $129.00
$84.42
2
Engine Block Heater Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: 2.7l. 3.5l.
MSRP $107.00
$69.84
MSRP $107.00
$69.84
