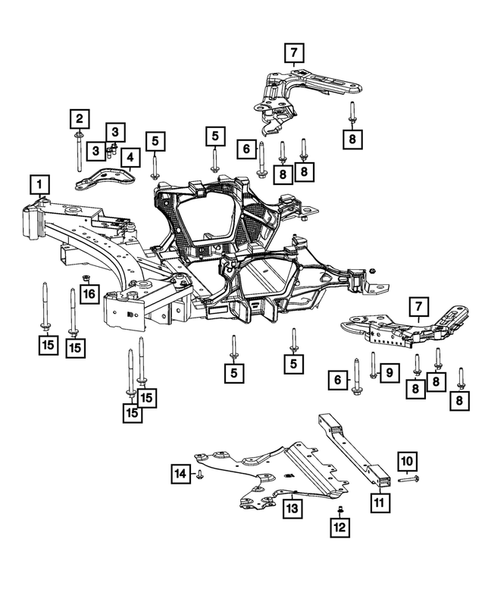

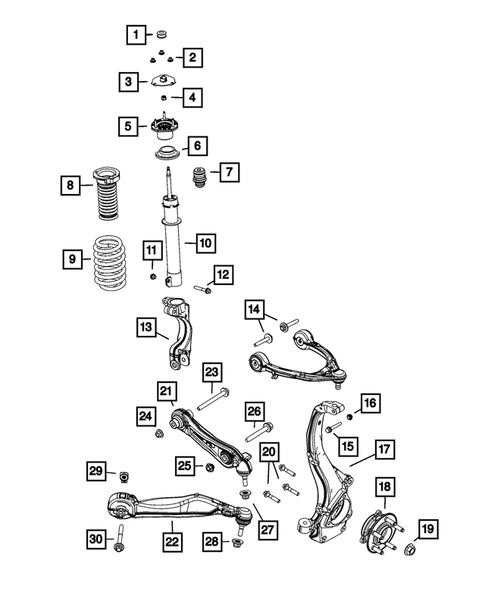

Front Suspension, Strut and Cradle for 2021 Jeep Grand Cherokee L
No.
Part # / Description / Price
Price
N/A
MSRP $59.55
$42.56
2
Hex Nut And Washer
Mopar
Mopar Description: M8x1.25. Exhaust Bracket to Underbody. Hinge Attaching. Hinge to Roof.
MSRP $3.20
$2.85
MSRP $3.20
$2.85
4
Hex Flange Lock Nut Mopar
Mopar Description: M12x1.25. Rack & pinion tie rod to knuckle. M12x1.75. Damper to Inner Tie Rod. Steering Damper to Linkage. Steering damper to rod& link assy. Watts Link to Bellcrank. Front shock to top mount nut.
MSRP $7.80
$6.83
MSRP $7.80
$6.83
6
MSRP $36.25
$25.84
10
MSRP $214.00
$138.43
11
MSRP $65.45
$46.88
12
MSRP $4.90
$4.28
14
Hex Head Screw And Washer Mopar
Mopar Description: Upper Control Arm to Body. Front pedestal to crossmember. Steering Gear to Crossmember. Body 27. M12x1.50x80.00.
MSRP $5.50
$4.88
MSRP $5.50
$4.88
15
MSRP $387.00
$248.40
15
MSRP $382.00
$248.40
16
Hex Flange Head Bolt Mopar
Mopar Description: Engine Mount To Engine Mount Bracket. M10x1.25x76.50. Uca to knuckle. If the spindle does not contain a press nut, then Items #10 & #11, will be used together. Upper Control Arm to Knuckle. If the spindle does not contain a press nut, then Items #17 , will be used together. Absorber To FEM. Starter motor to block. Starter to Transmission.
MSRP $4.55
$4.05
MSRP $4.55
$4.05
16
Hex Nut & Washer Mopar
Mopar Description: M10 x 1.25. If the spindle does not contain a press nut, then Items #10 & #11, will be used together. Upper Control Arm to Knuckle. If the spindle does not contain a press nut, then Items #17 , will be used together. Uca to knuckle. Link to control arm. Link to Stabilizer Bar.
MSRP $3.40
$3.00
MSRP $3.40
$3.00
17
Hex Drive Nut Mopar
Mopar Description: M10x1.5. AWD Models have a Weld Nut in Place. Shear plate to cradle plp bkt. Upper Control Arm to Knuckle.
MSRP $4.30
$3.75
MSRP $4.30
$3.75
18
Hex Head Screw And Washer Mopar
Mopar Description: Uca to knuckle. If the vehicle has a press nut on the spindle for the UCA, only bolt 06512994AA will be used. Upper Control Arm to Knuckle.
MSRP $3.85
$3.38
MSRP $3.85
$3.38
19
MSRP $319.00
$208.19
21
Hex Flange Lock Nut Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine Upg I w/ESS. 5.7L V8 HEMI MDS VVT Engine.
MSRP $1.75
$1.58
MSRP $1.75
$1.58
22
Hex Flange Head Bolt, Mounting Mopar
Mopar Description: M12x1.75x60.00. Engine Oil Cooler Bracket To Engine Mount Bracket. Bearing to Knuckle Attaching. Bearing Assembly to Knuckle. Link to Frame. Bearing Hub to Knuckle.
MSRP $6.95
$6.08
MSRP $6.95
$6.08
23
MSRP $396.00
$253.80
23
MSRP $384.00
$247.32
23
MSRP $373.00
$240.84
24
MSRP $492.00
$319.68
24
Lower Control Arm, Air Suspension, Right Mopar
Mopar Description: Tension Link. Front.
MSRP $103.00
$68.07
MSRP $103.00
$68.07
24
MSRP $103.00
$68.07
24
MSRP $475.00
$304.56
25
MSRP $10.50
$8.75
26
MSRP $2.90
$2.55
27
MSRP $89.45
$59.12
28
MSRP $13.25
$11.06
29
Nut, Right Mopar
Mopar Description: Handling Link To Knuckle. Lower Arm to Knuckle. Tension Link to Knuckle.
MSRP $10.05
$8.40
MSRP $10.05
$8.40
No.
Part # / Description / Price
Price
N/A
MSRP $59.55
$42.56
N/A
Hex Flange Lock Nut Mopar
Mopar Description: M12x1.25. Rack & pinion tie rod to knuckle. M12x1.75. Damper to Inner Tie Rod. Steering Damper to Linkage. Steering damper to rod& link assy. Watts Link to Bellcrank. Front shock to top mount nut.
MSRP $7.80
$6.83
MSRP $7.80
$6.83
1
Hex Nut And Washer Mopar
Mopar Description: M8x1.25. Exhaust Bracket to Underbody. Hinge Attaching. Hinge to Roof.
MSRP $3.20
$2.85
MSRP $3.20
$2.85
2
Not For Sale
2
Not For Sale
2
Not For Sale
5
MSRP $65.45
$46.88
6
MSRP $4.90
$4.28
8
Hex Head Screw And Washer Mopar
Mopar Description: Upper Control Arm to Body. Front pedestal to crossmember. Steering Gear to Crossmember. Body 27. M12x1.50x80.00.
MSRP $5.50
$4.88
MSRP $5.50
$4.88
9
MSRP $382.00
$248.40
9
MSRP $387.00
$248.40
10
Hex Drive Nut Mopar
Mopar Description: M10x1.5. AWD Models have a Weld Nut in Place. Shear plate to cradle plp bkt. Upper Control Arm to Knuckle.
MSRP $4.30
$3.75
MSRP $4.30
$3.75
11
Hex Head Screw And Washer Mopar
Mopar Description: Uca to knuckle. If the vehicle has a press nut on the spindle for the UCA, only bolt 06512994AA will be used. Upper Control Arm to Knuckle.
MSRP $3.85
$3.38
MSRP $3.85
$3.38
12
Hex Nut & Washer Mopar
Mopar Description: M10 x 1.25. If the spindle does not contain a press nut, then Items #10 & #11, will be used together. Upper Control Arm to Knuckle. If the spindle does not contain a press nut, then Items #17 , will be used together. Uca to knuckle. Link to control arm. Link to Stabilizer Bar.
MSRP $3.40
$3.00
MSRP $3.40
$3.00
12
Hex Flange Head Bolt Mopar
Mopar Description: Engine Mount To Engine Mount Bracket. M10x1.25x76.50. Uca to knuckle. If the spindle does not contain a press nut, then Items #10 & #11, will be used together. Upper Control Arm to Knuckle. If the spindle does not contain a press nut, then Items #17 , will be used together. Absorber To FEM. Starter motor to block. Starter to Transmission.
MSRP $4.55
$4.05
MSRP $4.55
$4.05
13
MSRP $319.00
$208.19
15
Hex Flange Lock Nut Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine Upg I w/ESS. 5.7L V8 HEMI MDS VVT Engine.
MSRP $1.75
$1.58
MSRP $1.75
$1.58
16
Hex Flange Head Bolt, Mounting Mopar
Mopar Description: M12x1.75x60.00. Engine Oil Cooler Bracket To Engine Mount Bracket. Bearing to Knuckle Attaching. Bearing Assembly to Knuckle. Link to Frame. Bearing Hub to Knuckle.
MSRP $6.95
$6.08
MSRP $6.95
$6.08
17
MSRP $373.00
$240.84
17
MSRP $384.00
$247.32
18
MSRP $475.00
$304.56
18
MSRP $492.00
$319.68
19
MSRP $10.50
$8.75
20
MSRP $2.90
$2.55
21
MSRP $89.45
$59.12
22
MSRP $13.25
$11.06
23
Nut, Right Mopar
Mopar Description: Handling Link To Knuckle. Lower Arm to Knuckle. Tension Link to Knuckle.
MSRP $10.05
$8.40
MSRP $10.05
$8.40
2 This part contains hazardous materials. Extra shipping costs apply.
No.
Part # / Description / Price
Price
N/A
Installation Rivnut Mopar
Mopar Description: Access Door To Cradle. M8x1.25 With Serrations. Access DoorTo Cradle.
MSRP $2.95
$2.63
MSRP $2.95
$2.63
N/A
U Multi Thread Nut Mopar
Mopar Description: Skid Plate To Underbody. Top Plate to Cradle Mailbox.
MSRP $6.95
$6.15
MSRP $6.95
$6.15
N/A
MSRP $2.80
$2.48
1
MSRP $1,780.00
$1,144.88
2
Hex Flange Head Screw Mopar
Mopar Description: Top Plate to Front Cross Beam. Front Diff Bracket to Isolator Right For Vehicles Built 01-13-2014 and Later. Front Diff Bracket to Isolator Left For Vehicles Built 01-13-2014 and Later. Front Differential Bracket to Isolator Left. M12x1.50x140.00.
MSRP $16.75
$13.93
MSRP $16.75
$13.93
3
Hex Flange Head Bolt Mopar
Mopar Description: Top Plate to Cradle Mailbox. M12x1.75x25.00.
MSRP $2.60
$2.25
MSRP $2.60
$2.25
4
MSRP $39.30
$28.24
4
MSRP $39.30
$28.24
5
Hex Head Bolt Mopar
Mopar Description: Impact Brace to Body. Impact Brace to Crossmember. Cradle to Body 1 and 2 Attachment.
MSRP $4.20
$3.68
MSRP $4.20
$3.68
6
Screw Mopar
Mopar Description: Cradle to Body Rear Attachments. Upper Bushing To DI Bracket.
MSRP $9.15
$7.56
MSRP $9.15
$7.56
8
Hex Flange Head Bolt Mopar
Mopar Description: M12x1.75x67.00. Brace To Crossmember. Clevis Bracket to Crossmember. Shear Plate to Body. Cross car brace to body phev.
MSRP $5.20
$4.58
MSRP $5.20
$4.58
9
Rivet Nut Mopar
Mopar Description: Engine Shield To Cradle. M6x1.00. Rear Bumper To Bracket.
MSRP $4.45
$3.98
MSRP $4.45
$3.98
10
Hex Drive Nut Mopar
Mopar Description: M10x1.5. AWD Models have a Weld Nut in Place. Shear plate to cradle plp bkt. Upper Control Arm to Knuckle.
MSRP $4.30
$3.75
MSRP $4.30
$3.75
11
Hex Washer Head Bolt Mopar
Mopar Description: Impact Brace to Tunnel Rail. M10x1.50x90.00. Shear Plate to Cradle.
MSRP $4.20
$3.68
MSRP $4.20
$3.68
12
Hex Flange Head Screw Mopar
Mopar Description: M8x1.25x70.00. Fem to fesm. Torquebox Crossmember to Stabilizer Bar Bracket. FEM Attaching. FEM To Frame. FEM to Sheet Metal. Fender Closure to Radiator Closure attach. Speaker To Body / Bracket To Speaker Box. Exhaust Sound Speaker To Body.
14
MSRP $2.10
$1.80
16
Hex Flange Head Screw And Washer Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine Upg I w/ESS. 5.7L V8 HEMI MDS VVT Engine.
MSRP $3.90
$3.45
MSRP $3.90
$3.45
17
MSRP $9.95
$8.26
21
MSRP $18.40
$14.85
